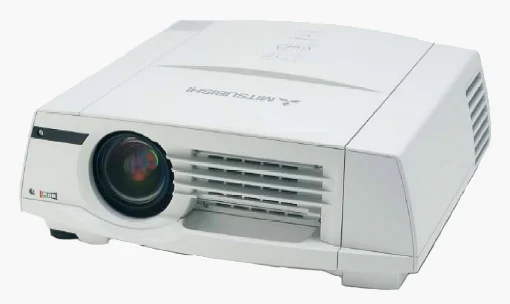

Mitsubishi XL 5980U

The Mitsubishi XL5980U Projector is a XGA Large Venue Projector. This lamp based projector is capable of displaying 5,500 Lumens at its brightest setting with a native resolution of 1024×768 . The internal 3LCD technology is an innovative 3-chip design that sets itself apart by delivering vibrant, true-to-life images with better color brightness and a wider color gamut. The unique projector lens has the ability to be shifted to allow greater flexibility in positioning the projector relative to the screen.

Categorieën: ,
  • Lumens (ANSI): 5,500
  • Native Resolution: XGA (1024 x 768)
  • Maximum Resolution: UXGA (1600 x 1200)
  • Aspect Ratio: 4:3
  • Inputs:VGA , Composite Video, S-Video
  • Speakers: Built in Mono SpeakerMitsubishi XL5980U 3LCD Projector for rent at Film Equipment Hire

The XL5980U is Mitsubishi’s response to the growing demand for projection systems that can be mounted to the ceiling. A full array of the most advanced technologies in the industry has been incorporated to offer projectors that provide superior performance. A massive 5500 ANSI lumens of brightness for image clarity, sRGB, Natural Color Matrix™ (with Color Saturation and TINT adjustment) and 3D CineView among other innovations for image processing and enhancement, and presentation features like 2-Way Mechanical Lens Shift, Digital Keystone Correction and amazingly quiet 30dBA operation, all in one package to ensure the perfect presentation. Attractively designed for both esthetics and easy installation.

Video Inputs: RCA x 1, S-Video x 1, BNC x 2; Audio: RCA (L,R) x 1
Computer Inputs: BNC x 5, Mini D-sub 15pin x 1

Interface Provided

  • Qty 1, 2
  • Connector Type 15 pin HD D-Sub (HD-15), 4 pin USB Type B, 4 pin mini-DIN, 8 pin mini-DIN, BNC, RCA, mini-phone 3.5 mm
  • Purpose / Location management


  • Built-in Devices  speaker


  • Image Brightness  5500 ANSI lumens
  • Image Contrast Ratio 600:1
  • Image Size 59.8 in – 300 in
  • Projection Distance 7.5 ft – 40 ft

Video Output

  • Analog Video Signal  RGB

Video Input

  • Video Modes: 1080i, 525p, 720p
  • Analog Video Format: NTSC, NTSC 4.43, PAL, PAL 60, PAL-M, PAL-N, SECAM
  • Analog Video Signal: RGB, S-Video, component video, composite video
  • Video Interfaces: S-Video, VGA, composite video
  • TV System: NTSC, SECAM, PAL, PAL-N, PAL-M, NTSC 4.43, PAL 60

Environmental Parameters

  • Min Operating Temperature  41 °F
  • Max Operating Temperature 104 °F


  • Lamp Type 270 Watt
  • Lamp Life Cycle Up to 2000 hour(s)


  • Class digital projector
  • Recommended Use presentation and multimedia
  • Type LCD projector
  • Portability non-portable
  • Min Image Size 59.8 in
  • Max Image Size 300 in
  • Color Support 16.7 million colors
  • Native Resolution 1024 x 768
  • Display Resolution Abbreviation XGA
  • Native Aspect Ratio 4:3
  • Brightness 5500 ANSI lumens
  • Contrast Ratio 600:1
  • Min Screen Distance 7.5 ft
  • Max Screen Distance 40 ft
  • Projector Features 3D CineView, ColorView Natural Color Matrix, picture in picture

Audio Output

  • Type speaker(s)
  • Sound Output Mode mono
  • Form Factor integrated
  • Output Power / Channel 5 Watt

Projector Lens System

  • Lens Aperture f/1.8-2.1

Dimensions & Weight

  • Width 17.1 in Depth 17.4 in Height 6.9 in Weight 19.84 lbs

Audio Output Details

  • Speaker Type mixed channel Speakers Qty 1
