Ecler MAC 90 i

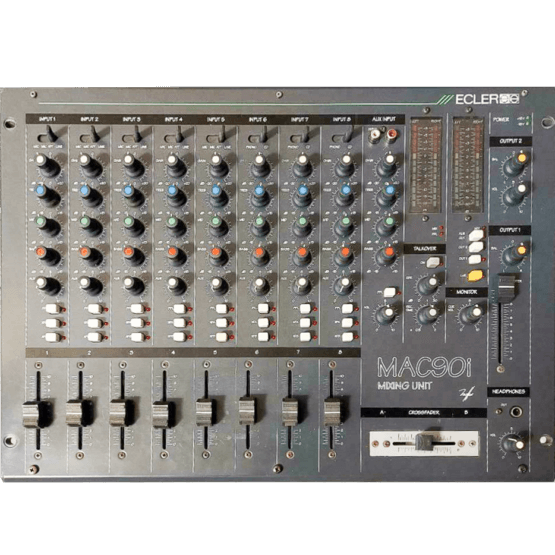

The MAC90i mixer is designed for its use in discotheques, ballrooms, bars, disco bars and external p.a. applications.

The MAC90i has 8+1 mixable channels, 8 with regular sliding fader and a special effects return  channel  with  rotary  knob,  which  can  also  mix  any  line  type  input.  12  stereo  inputs  are  available:  3  PHONO,  3  CD  (compact  disc),  5  LINE,  AUX  RTN  and  MIX;  plus  5  more  inputs  for  balanced microphones (XLR 3). The AUX RTN input is also doubled in the front panel AUX (14), so it can be used as an emergency input (portable CD players, portable DATs or even walkmans) without accessing the back panel connectors.  All channels have a lever switcher input selector, independent gain control for each input, as  well  as  3-band  tone  controls.  The  MAC90i  also  has  a  removable,  externally  exchangeable  CROSSFADER,  assignable  to  any  input  (through  switchers  with  visual  indicators)  for  an  easier  identification of the assigned channels and their positions. All  inputs  are  PFL-capable  in  order  to  visually  (through  the  VU  meters)  and  acoustically  (through headphones) monitor any signal connected to the unit’s inputs. An  external  power  supply  is  in  charge  of  making  the  rectified  and  stabilized  voltages  that  the mixer needs. This minimizes the background noise generated by the power supply. In  the  MAC90i,  we  have  cared  specially  about  the  roughness,  long-time  response  and  maximum adaptability to the DJ needs, getting a total ease of operation.

Categorieën: ,

Over dit mengpaneel:

The Ecler MAC90 has 3 phono inputs, 5 low line inputs, 4 high line inputs, and 4 Mic inputs which was plenty for what my group needed at the time. Each individual channel has separate level and gain control , this mixer has phantom power in case you are using a condenser microphone and it has the option to turn of the phantom power in case you don’t need it on each individual channel.

UTILIZATION

Out1 , Out2, Rec1, Rec2 and Cue are the outputs on the MAC90I. The whole unit seems to be very well built and never had any issues with it, we purchased this model used at a great deal. Mac mixers have been around for a long time and we have been using many different models of them. The MAC 90I was one of our favorites that we have came across.

SOUNDS

The MAC90I does not generate any hissing , and the EQ is very good. As long as you use the right inputs for whatever you are running through it you will get a clean sound. You can also rack this unit up if you want, I can not remember how many rack spaces it will take up though. But it does take more than 2.

OVERALL OPINION

The best part about this mixer is that it has all of the inputs that could need, no matter where you are pulling audio from there is an input for it. The MAC90I is very quiet and will last you a long time, all of Ecler’s mixers are great especially the MAC line. The price for this model is ideal for what you expect to pay for a mixer of this size and quality. I recommend anyone needing a solid mixer with a lot of inputs and wants more of that “classic” mixer feel to purchase the MAC90I.
